How to Setup your Yealink T30P Voip Handset

• This entry-level Yealink T30 VoIP Phone is ideal for home or small business users.

  You can use a Yealink wireless headset with this phone and conduct 5-way conferencing calls

•







  Step 1 of 4

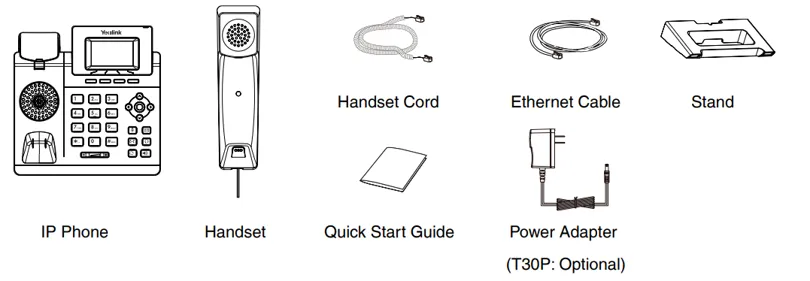

  Included in the box

  • IP Phone
  • Handset
  • Handset Cord
  • Quick Start Guide
  • Ethernet Cable
  • Power Adapter
  • Stand

  We recommend that you use the accessories and power adapters provided or approved by Yealink. The unapproved third-party accessories may result in reduced performance and even damage to the phone. The IP phone should be used with Yealink original power adapter (5V/600mA) only.

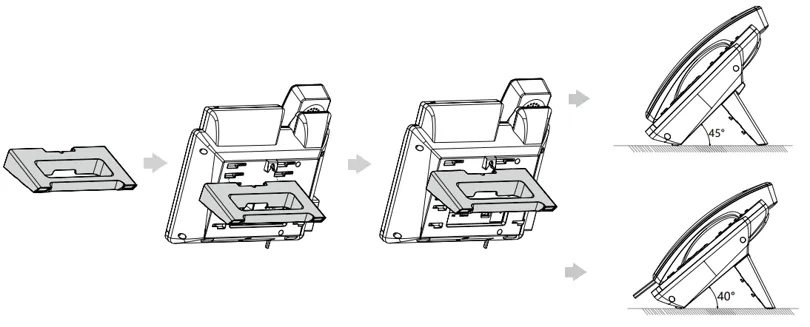

  Attach the Stand

  Follow the steps in the illustration to attach the stand

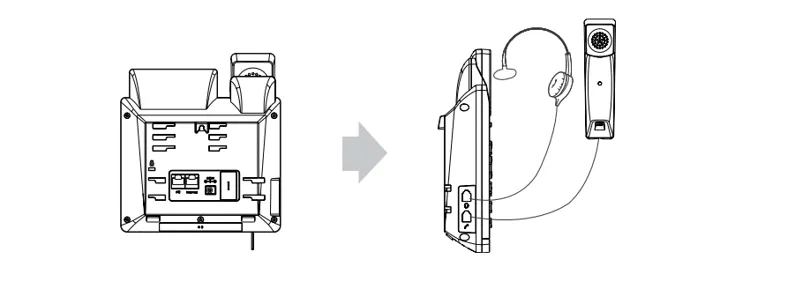

  Connect the Handset

  Plug the Handset and optional Headset into the phone

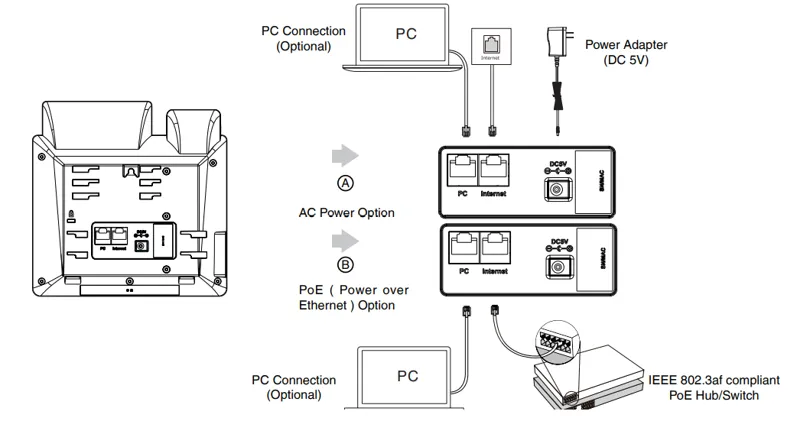

  Connect The Network and Power

  If you are connecting a PC to your phone, we recommend that you use the Ethernet cable provided by Yealink.

  For advanced users the device supports PoE (power over ethernet), if you have a PoE solution available you will not need to connect the power adapter.
• Need to configure your Handset?



  In most cases if you purchased a Yealink handset from Mweb with your VoIP service the device will autoconfigure when you connect it to the network for the first time.

  If you need to configure your VoIP service on your Yealink handset manually you can follow the steps in this guide.

• Download the Yealink T30 PDF Manual
